AC Ceiling Fan Capacitor CBB61 250V 450V China Run Starting Motor 35 uf Capacitors CBB61

FOB Reference Price:Get Latest Price
US $0.2-2 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Jiaming
Model Number:
CBB61
Type:
Polypropylene Film Capacitor
Application:
General Purpose
Package Type:
Surface Mount
Capacitance:
1-35uF
Rated Voltage:
250-500VAC
Operating Temperature:
40/70/21
Color:
Black
Material:
Metallized Polypropylene Film
SupplyAbility
SupplyAbility:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton on pallet or according to customers' requirement
Port
Ningbo or Shanghai
Lead Time :
15-25 days

AC Ceiling Fan Capacitor CBB61 250V 450V China Run Starting Motor 35 uf Capacitors CBB61

Company Introduction

50 uf 450v capacitor for motor en60252



company specializing in the production of CBB65A-1,CBB65A-2,CBB61,CBB60,CBB80 capacitor.Technologically advanced products,reliable performance,have complete testing means and a sound quality assurance system.The product first Through the CQC,UL,TUV certification and ISO9001 international quality system certification.Main products and air-conditioning,electric Machine,washing machine,electric fan,refrigerator and other household appliances,including special capacitor,metal halide lamp bulb lamp with power factor compensation capacitor product quality,in the comestic advanced level.

Ahead of the JiaMing people,will continue adhering to the “innovation and refinement,integrity management” purposes, with friends from all walks of life Hand in hand ,create brilliant.



Product Description:

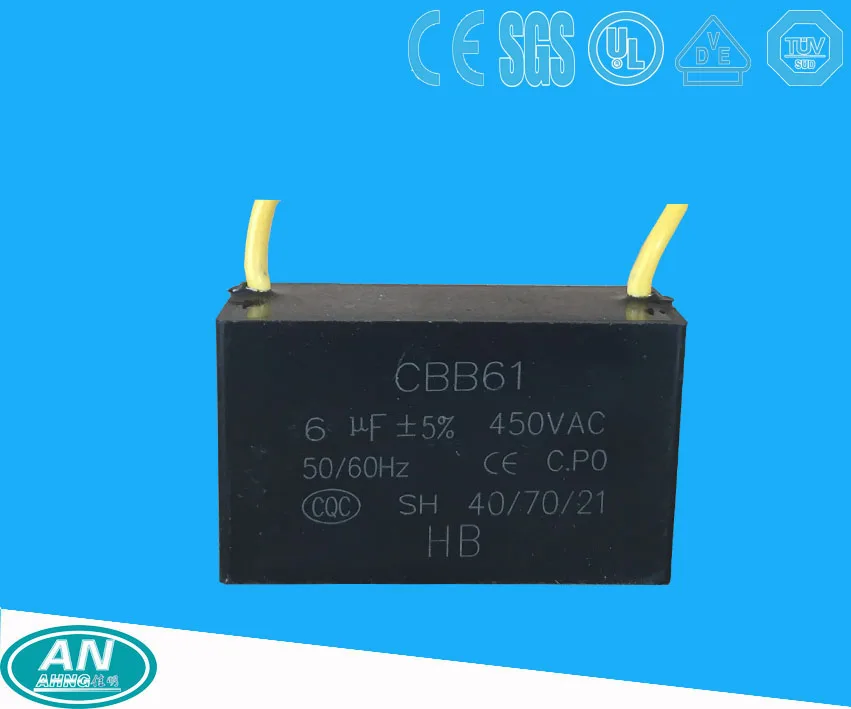

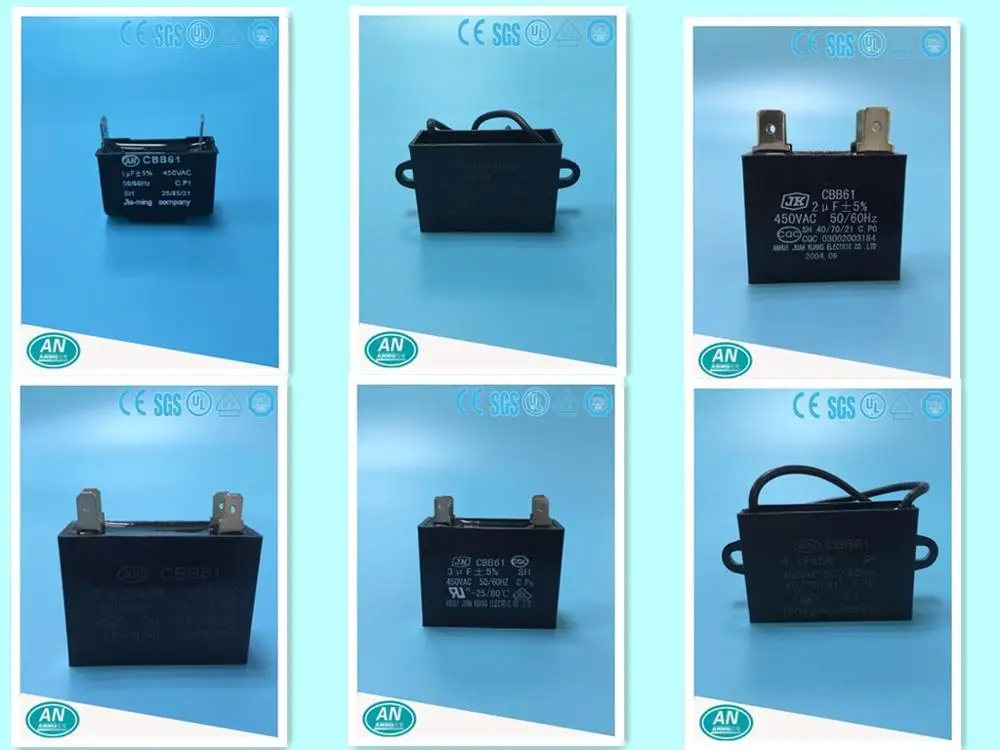

CBB61-6uf-blackCBB61-12uf-250VCBB61-12uf

 Product features:

1.Metallized polyester film, a higher operating temperature, stable performance

2.Sense winding structure, low loss, small size, high insulation resistance

3.Self-healing, a wide range of capacity, long life

4.Flame retardant epoxy resin powder coating



Dimension:





Technical characteristics:



Climate category 40/70/21
Rated voltage Vn250VAC-450 VAC
Test voltage between armatures2.0Un 2s
Test voltage between terminals and case

≥2200VAC 2s

Capacitance tolerance ±5% ±10%
Insulating resistance between armutures≥3000MΩ·µF(20°C  1min)
Insulating resistance between  terminals and case ≥5000MΩ·µF(20°C  1min)
Dissipation factor≤0.002 (20°C  1000Hz)

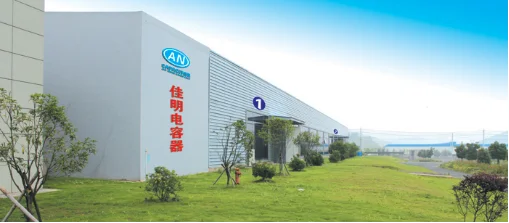

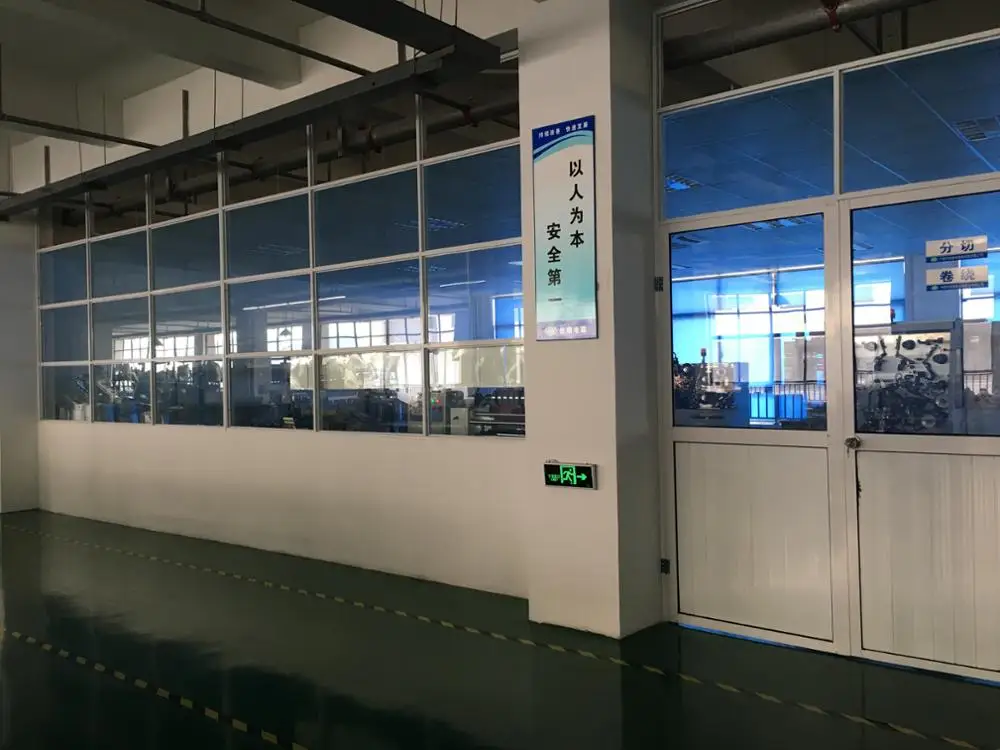

Factory show:






Our certificate:
