cbb60 capacitor 250vac 50/60hz 25/70/21 made in China

FOB Reference Price:Get Latest Price
US $0.2-1.2 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
AN
Model Number:
CBB60
Type:
Polyester Film Capacitor
Application:
AC / Motor
Package Type:
Through Hole
Capacitance:
3-120 uf
Rated Voltage:
250V-450V
Operating Temperature:
40/85/21
Capacitance tolerance:
5%(J) 10%(K)
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton on pallet or according to customers' requirement
Port
Ningbo or Shanghai
Lead Time :
15 days

cbb60 capacitor 250vac 50/60hz 25/70/21 made  in China

Company Introduction




company specializing in the production of CBB65A-1,CBB65A-2,CBB61,CBB60,CBB80 capacitor.Technologically advanced products,reliable performance,have complete testing means and a sound quality assurance system.The product first Through the CQC,UL,TUV certification and ISO9001 international quality system certification.Main products and air-conditioning,electric Machine,washing machine,electric fan,refrigerator and other household appliances,including special capacitor,metal halide lamp bulb lamp with power factor compensation capacitor product quality,in the comestic advanced level.

Ahead of the JiaMing people,will continue adhering to the “innovation and refinement,integrity management” purposes, with friends from all walks of life Hand in han ,create brilliant.

Product Description


material:plastic shell,plastic lid for sealing or resin for sealing.
characteristic:Small volume,light weight,low loss,excellent self-healing performance.
others:Copper soldering terminal,plastic coated copper wire and CP wire are available.
Application:it is widely used as the start-up and running capacitor.That is specially for micro water pump.cleaning machine. washing machine and single-phase household electrical appliances etc.
function:it help motors start and run and can continuously operate under rated conditions.

Dimension

Capacitance(μF)

Dimension(mm)

Capacitance(μF)

Dimension(mm)

Capacitance(μF)

Dimension(mm)

4

30*60

16

38*70

55

50*100

5

30*60

18

40*70

60

50*110

6

30*60

20

40*70

70

55*100

7

35*60

25

42*80

80

55*110

8

35*60

30

42*90

90

55*110

9

35*60

35

45*90

100

55*120

10

35*60

40

50*90





12

34*70

45

50*90





15

34*70

50

50*90





Technical characteristics:

Range

3-120 μF

Rated voltage Vn

250-450V

Rated frequency

50Hz 60Hz

Capacitance tolarance

+5% +10%

Climate category

40/85/21

Dissipation factor

(at 50HZ-100HZ and 20)≤0.002

Test voltage between armatures

2.0*Un for 2s

Test voltage between terminals and case

2.2kavc for 2s

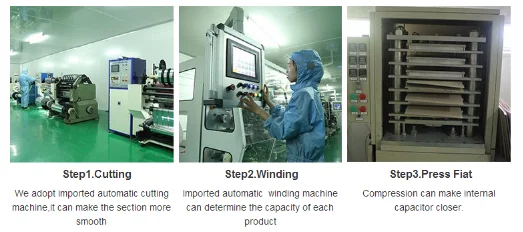

Flow Diagram


Our Certificate
